Malleable Iron Pipe Fittings

Name: Malleable Iron Pipe Fittings
Brand: Fluid Tech

Malleable iron pipe fittings for fire sprinkler and fire protection systems, produced to BS EN / DIN standards in black and galvanized finishes. Cast with the FM and UL marks for fire service.

FM & UL markedBS EN 10242 / DINBlack finishGalvanized finish

90° Elbow

Fig 90 · BS EN 10242 / DIN

90° Street Elbow

Fig 92 · BS EN 10242 / DIN

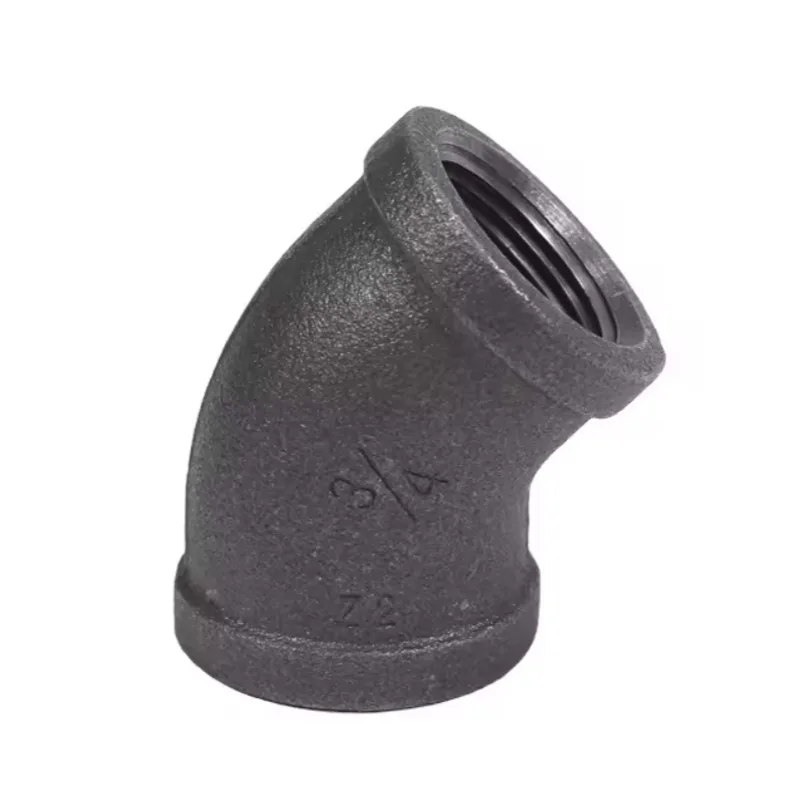

45° Elbow

Fig 120 · BS EN 10242 / DIN

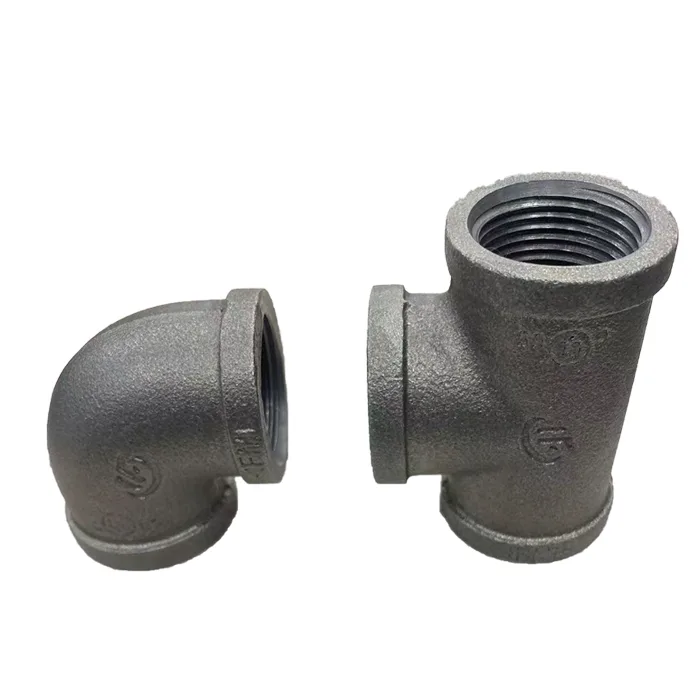

Female Threaded Tee

Fig 130 · BS EN 10242 / DIN

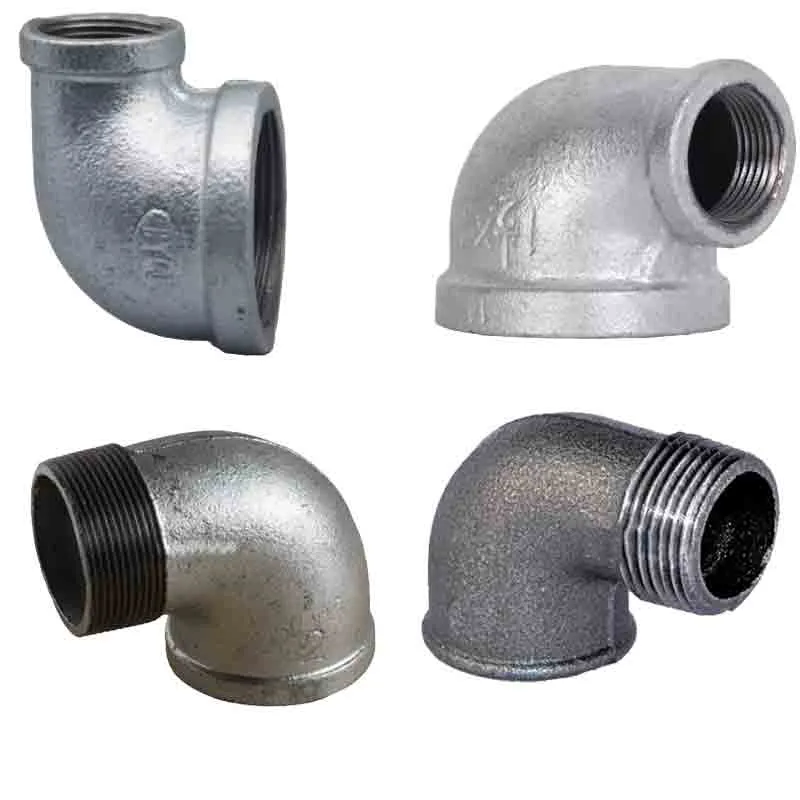

Equal Tee

Fig 130 · BS EN 10242 / DIN

90° Reducing Elbow

Fig 90R · BS EN 10242 / DIN

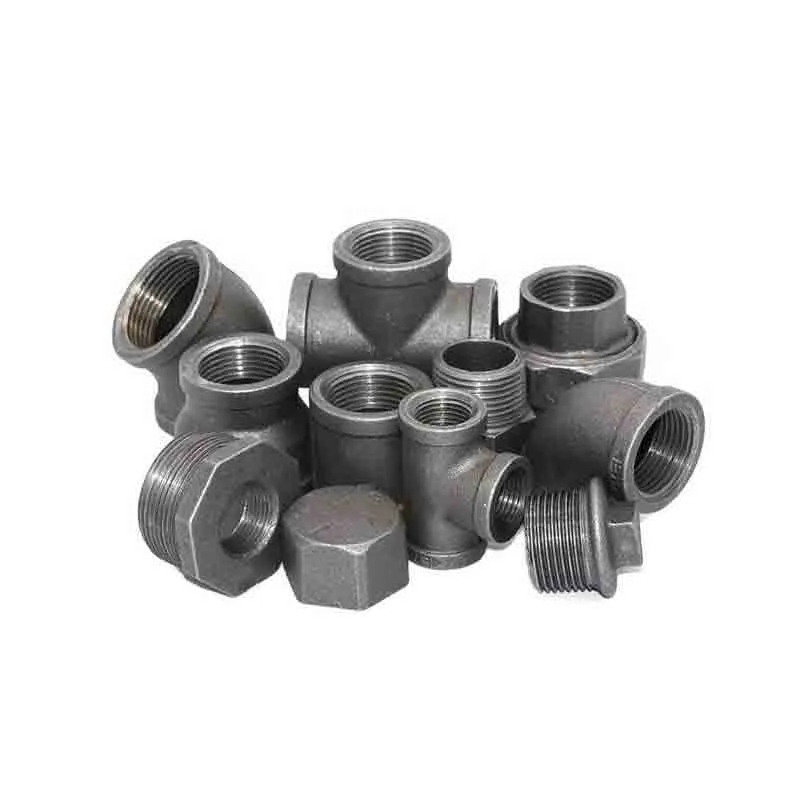

Part Thread Socket

Fig 220 · BS EN 10242 / DIN

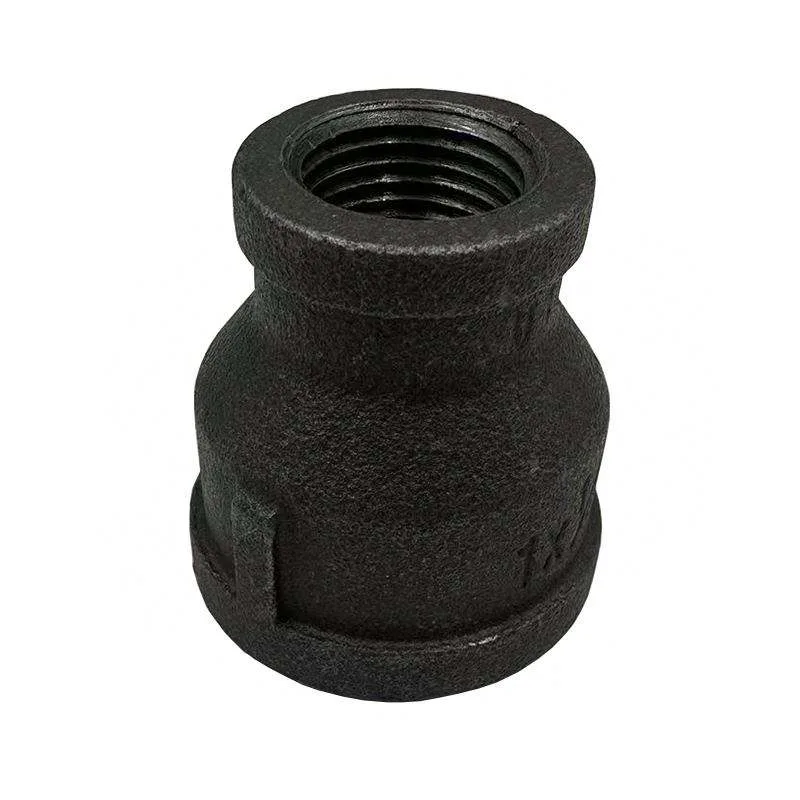

Reducing Socket

Fig 240 · BS EN 10242 / DIN

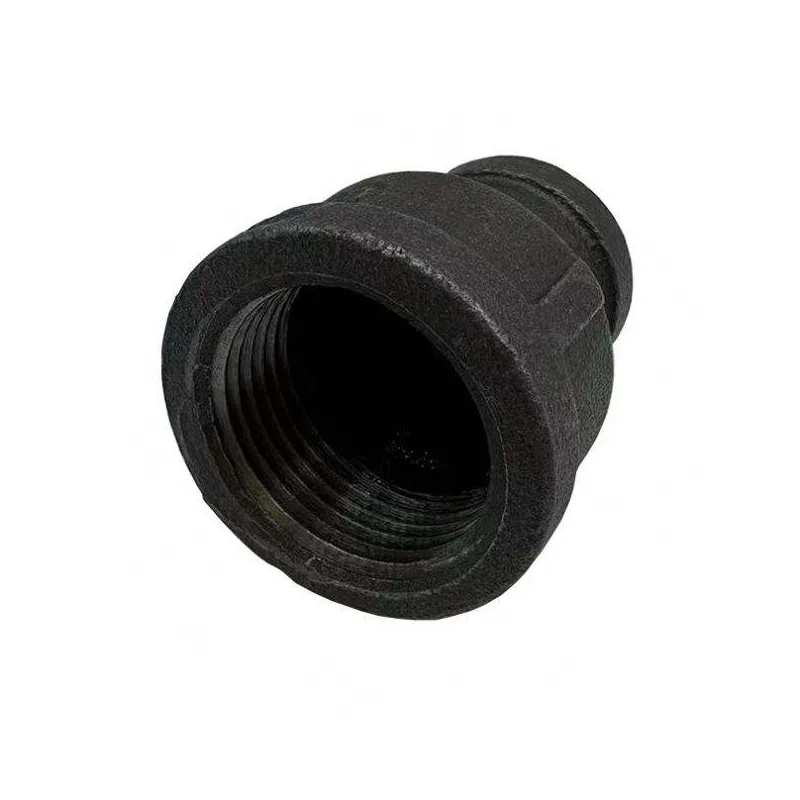

M&F Reducing Socket

Fig 246 · BS EN 10242 / DIN

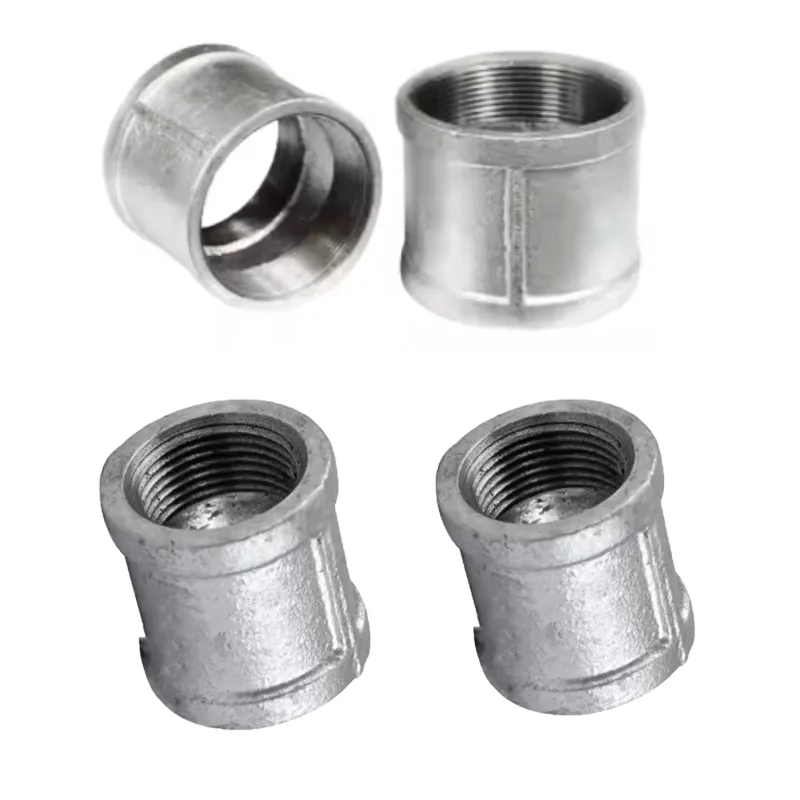

Coupling

Fig 220 · BS EN 10242 / DIN

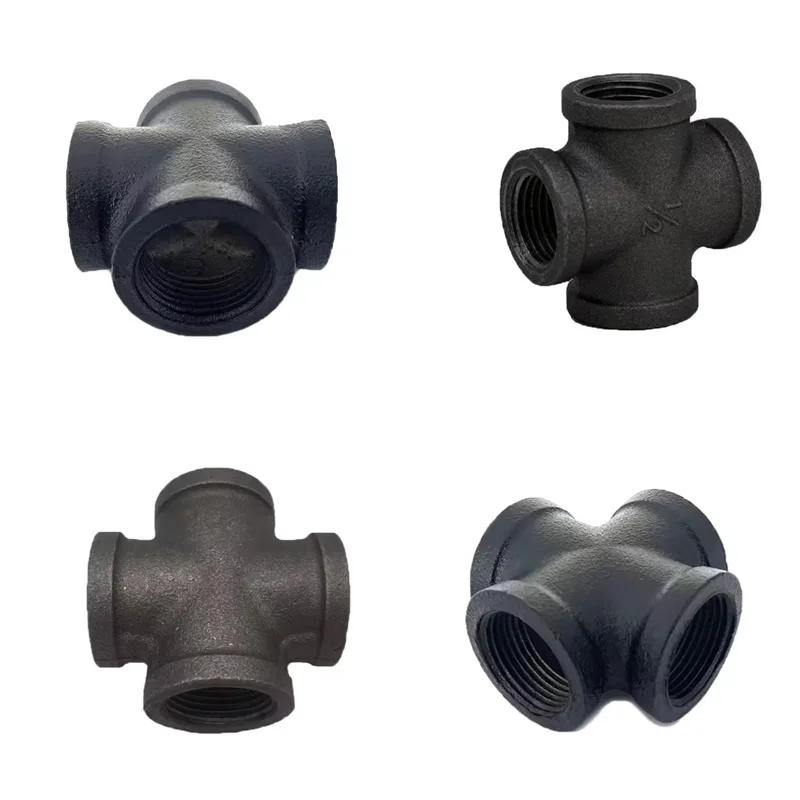

Straight Cross

Fig 180 · BS EN 10242 / DIN

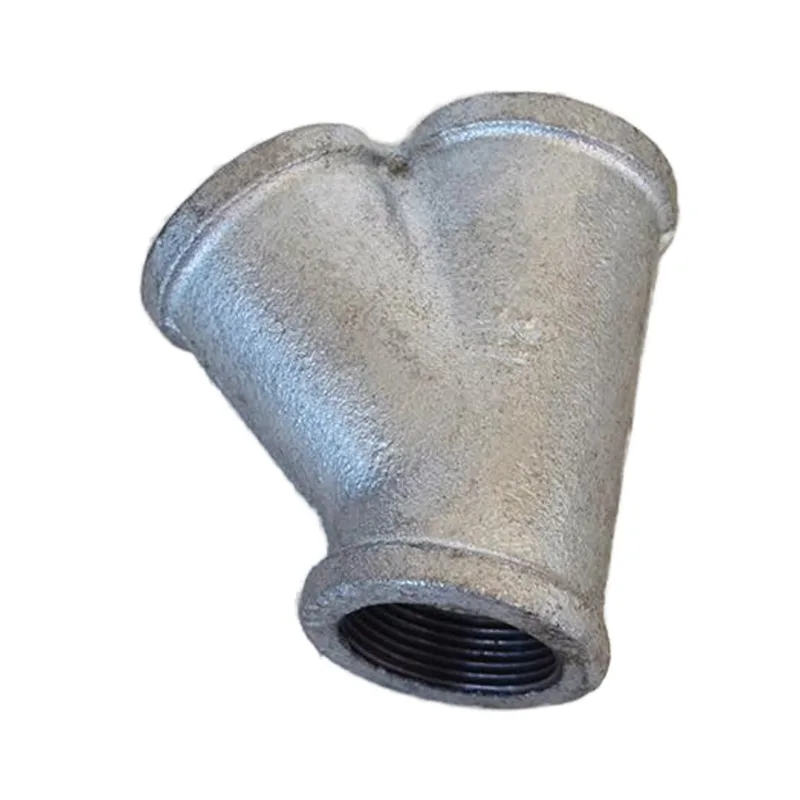

Y-Tee (Wye Tee)

Fig 165 · BS EN 10242 / DIN

About malleable iron pipe fittings

What a fire sprinkler spec actually requires from a malleable iron fitting, and how ours are made.

What is malleable iron?

Malleable iron starts as a brittle casting and is then annealed at high temperature so the internal structure turns into a tough, ductile form. The result is a fitting that takes torque during assembly without cracking, and holds pressure over a long service life. Our data sheet lists a working pressure range of 1.6 to 2.5 MPa and a working temperature range of -20 to 200 degrees C, with tensile strength above 330 MPa.

Sizes: DN15 to DN100

The standard range runs from DN15 (1/2 inch) up to DN100 (4 inch), which covers the full diameter run of a typical fire sprinkler branch line down to the sprinkler outlet. Every size is available in the figure styles shown above, so a branch, tee, coupling or elbow all come from one casting standard.

Black vs galvanized finish

Black finish is the traditional look of a fire system and pairs with black-painted fire pipe. Galvanized adds a zinc layer for extra corrosion resistance where the line sits in a damp or exposed location. Specify the finish per line in your bill of materials and we will match it fitting for fitting.

Thread standards: BS EN 10242 / BSPT and NPT

These malleable iron fittings are produced to BS EN 10242 (BSPT) and DIN, with the US-range equivalents built to ASTM A197 (NPT) per our technical documentation. Thread form and pitch are not interchangeable between the two systems, so match the thread standard to the rest of the line. See our BSPT vs NPT guide for the geometry.

FAQ

Are these malleable iron fittings rated for fire service?

Yes. They are cast with the FM and UL marks for fire protection service, to BS EN 10242 / DIN, with a working pressure of 1.6 to 2.5 MPa.

Which thread standard should I specify?

Match the thread standard to your pipe and the rest of the system. Ours cover BS EN 10242 (BSPT) and DIN, plus the US-range NPT equivalents. Cross-mating BSPT and NPT does not seal.

What sizes are available?

DN15 (1/2 inch) to DN100 (4 inch) across the full figure range, in black or galvanized finish.

Malleable iron fittings supplier — factory direct

01

Factory direct from Tianjin

The castings come from partner foundries that Fluid Tech has worked with since 2018, so you are buying from the factory side, not a reseller layer on top. Pricing reflects that, and the spec, the certification and the delivery date sit with one supplier instead of being passed between three.

02

What to check with a malleable iron fittings manufacturer

Buyers who search for a malleable iron pipe fittings manufacturer are usually checking four things before they send an RFQ: the fire marks (FM and UL, per our data sheets), the pressure range (1.6 to 2.5 MPa), the thread standard (BS EN 10242 / BSPT or the NPT range), and the size run (DN15 to DN100). All four are on this page, and the same four will be on the quote.

03

Bulk and single-line orders

A full sprinkler system order and a single replacement line both work from the warehouse in the northern logistics center. The fittings ship with the pipe and the hangers when you send the scope as one bill of materials, which is how a branch line stops arriving with a missing tee in it.
